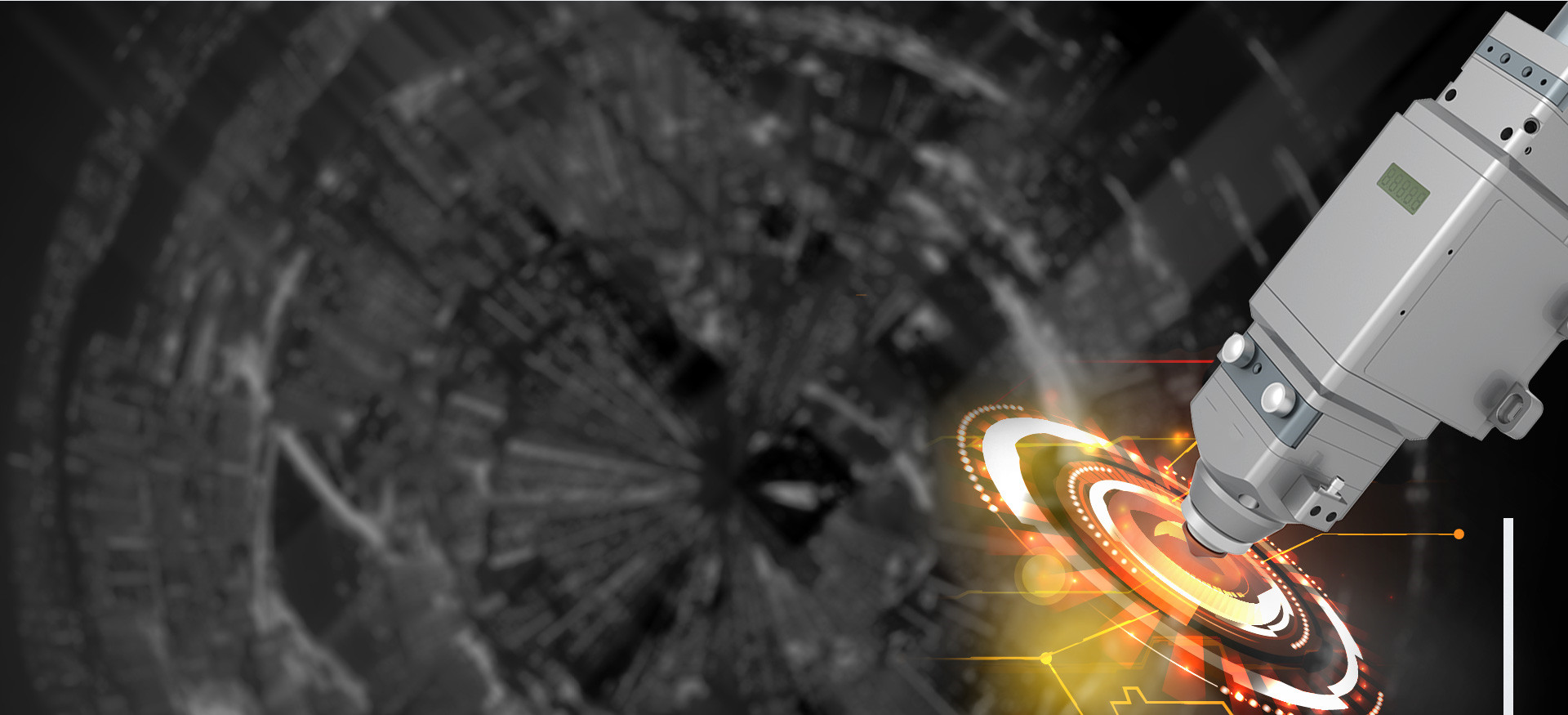

Autofocus laser head
autofocus
Automatic focus function of the laser head, the focus can be automatically adjusted, no manual manual focus,
The software can automatically and quickly replace different focusing mirrors to meet the cutting of plates of different thickness.
Simple and convenient operation, fast and accurate.
Large adjustment range
Precision 0.01mm, suitable for 0~20mm different types of plates.
Long life
The focusing component is water-cooled all around to achieve high power, small volume and long-term cutting
No heat, no fog, improve the life of the cutting head.

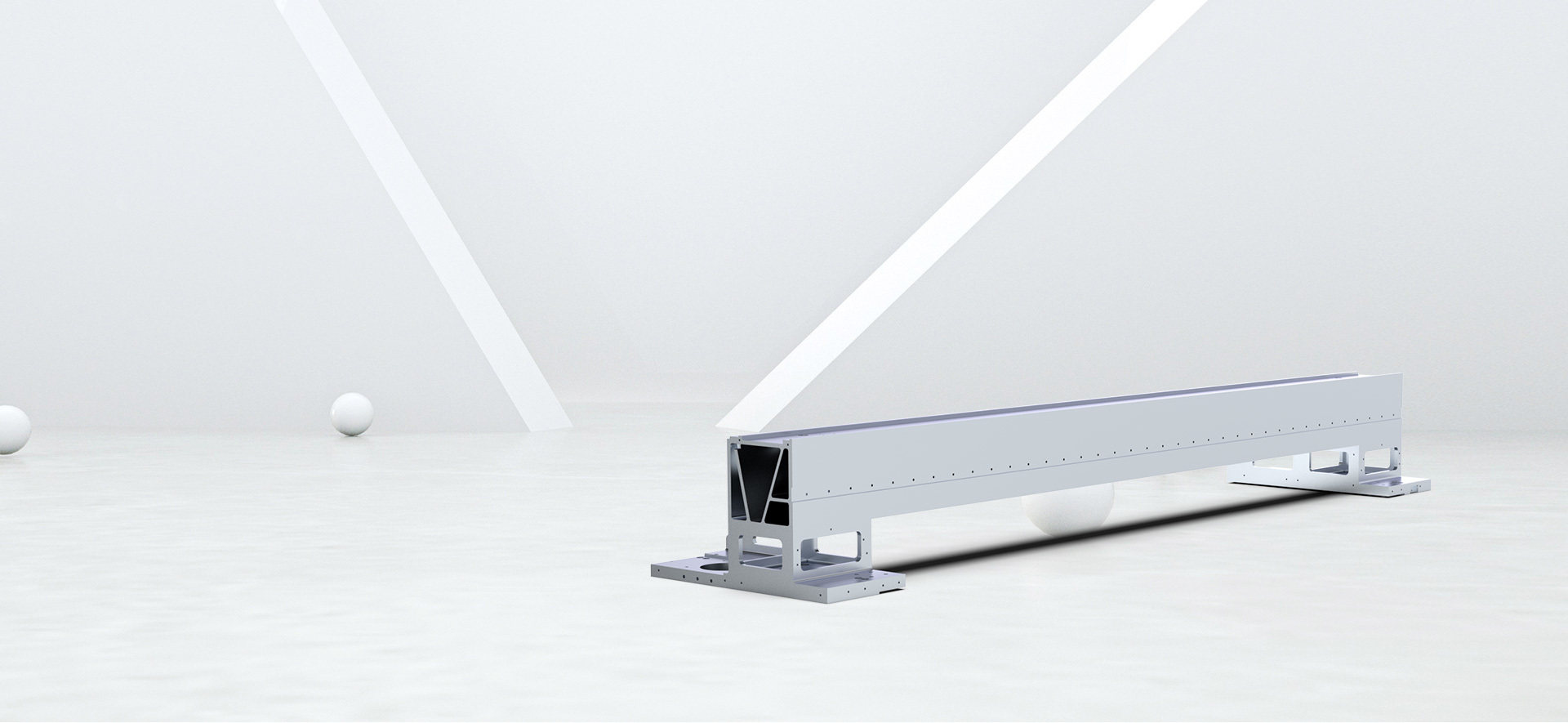

Aluminum beam
Based on the rigid-flexible coupling analysis, the aluminum profile beam is simulated under the actual working conditions. At the same time, it carries the multi-source load from the beam's own acceleration and motor torque. The reasonable layout design has high strength and strong stability, and ensures long-term high-speed cutting.
Bed annealing process
Girder type composite plate welding bed made of girder girder and girder plate splicing, with high strength welding process, high temperature annealing to remove stress, anti-deformation, low vibration, to ensure high precision cutting; Bed installation guide surface, the use of gantry machining center overall processing, to ensure the flatness of the installation surface error of 0.02mm
Integrated electrical cabinetThe electric cabinet and the fuselage are integrated, and the area is smaller Therefore, this fully sealed construction and standard wire can prevent dust from entering and dangerous flames

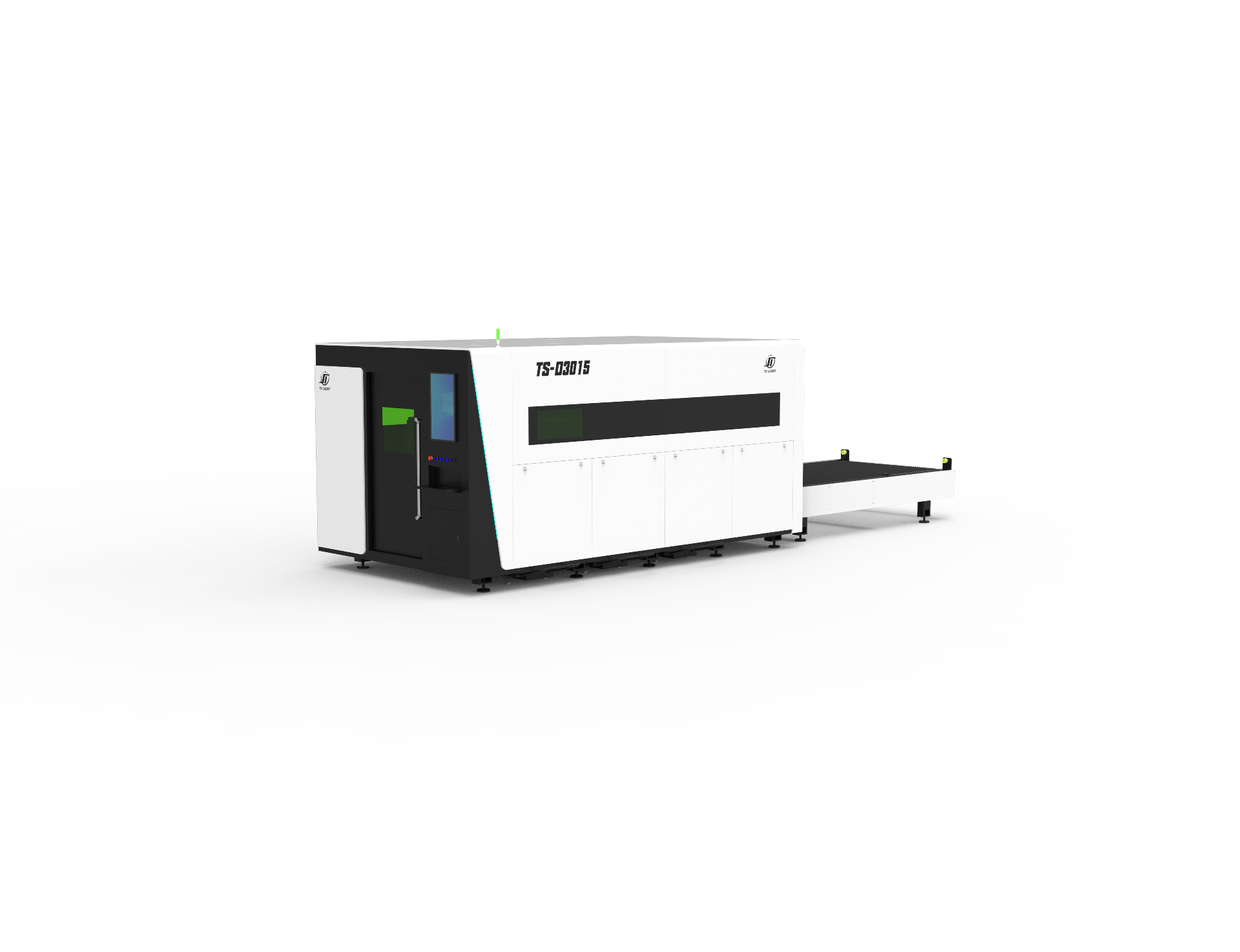

Machine type | TS-D3015 |
Processing format (mm) | 1500x3000mm |
Linkage speed | 120m/min |
acceleration | 1.5G |
Positioning accuracy | ±0.05mm |
Repeated positioning accuracy | ±0.02mm |
Applicable power | 1500w-60000w |
